Product Description
With high heat transferring efficient heat exchanger tubes and smooth shell, it ensures high velocities inside of the unit making the heat exchanger a very reliable, efficient and cost effective way to transfer heat indirectly between any boiler/solar water heater or heat pump water heater circuit and any pool or spa circuit, besides other applications.
Specification
With high heat transferring efficient heat exchanger tubes and smooth shell, it ensures high velocities inside of the unit making the heat exchanger a very reliable, efficient and cost effective way to transfer heat indirectly between any boiler/solar water heater or heat pump water heater circuit and any pool or spa circuit, besides other applications.
Features:
High heating efficiency for pool heating, big flow volume, compactable, easy installation and durable.
Max design temperature:208°C
Max. working pressure:1.3Mpa
Material: All stainless steel 316L,Titanium or according of customer's requirement
Warranty period:5 years
Advantages:
High efficiency,coefficient up to 10000 W/m2•°C,Heat exchanging capacity 3-7 times traditional equipments.
Compact configure, occupy small area,one tenth as the traditional equipments
Titanium material, endure high temperature, pressure and corruption.
Helix screw thread elasticity heat exchange bundle, eliminate the stress
Design flux speed is 5.5m/s, less dirt.
ASME standard VIII-1
Easy clean and maintain
Big flow volume
Compactable
Easy installation and durable
| Model No. |
Normal Capacity |
Pool Capacity |
Heat Transfer Area |
| KW |
Kbtu/hr |
Gallons@1oF/hr |
Literes@1o C/hr |
m2 |
| ECO-55K |
16 |
55 |
4700 |
32021 |
0.15 |
| ECO-85K |
25 |
85 |
7300 |
49735 |
0.25 |
| ECO-155K |
45 |
155 |
13300 |
90613 |
0.33 |
| ECO-210K |
61 |
210 |
18000 |
122634 |
0.44 |
| ECO-300K |
88 |
300 |
25800 |
175776 |
0.64 |
| ECO-360K |
105 |
360 |
31500 |
21460 |
0.85 |
| ECO-600K |
175 |
600 |
52500 |
357684 |
1.55 |
| ECO-1200K |
352 |
1200 |
105600 |
719455 |
2.01 |
| ECO-2400K |
704 |
2400 |
211200 |
1438910 |
4.47 |
| ECO-3000K |
880 |
3000 |
264000 |
1798638 |
5.30 |
| ECO-3600K |
1056 |
3600 |
316800 |
2158365 |
6.42 |
| ECO-4500K |
1320 |
4500 |
396000 |
2697956 |
8.46 |
| ECO-5000K |
1467 |
5000 |
439000 |
3000000 |
8.87 |
| ECO-6000K |
1760 |
6000 |
526800 |
3600000 |
10.64 |

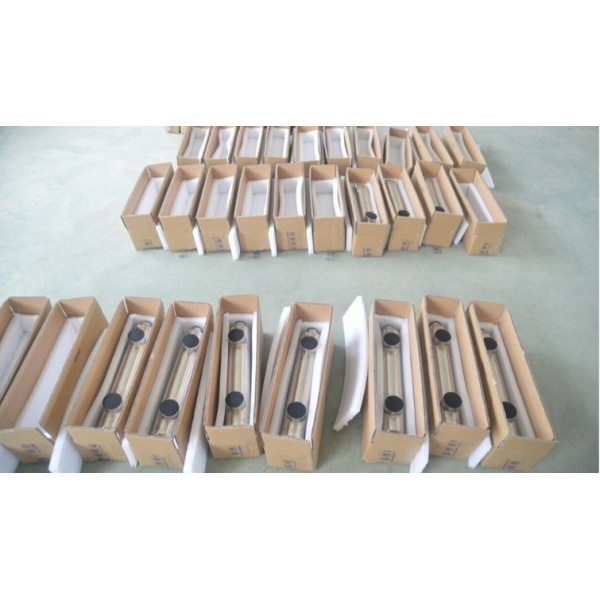

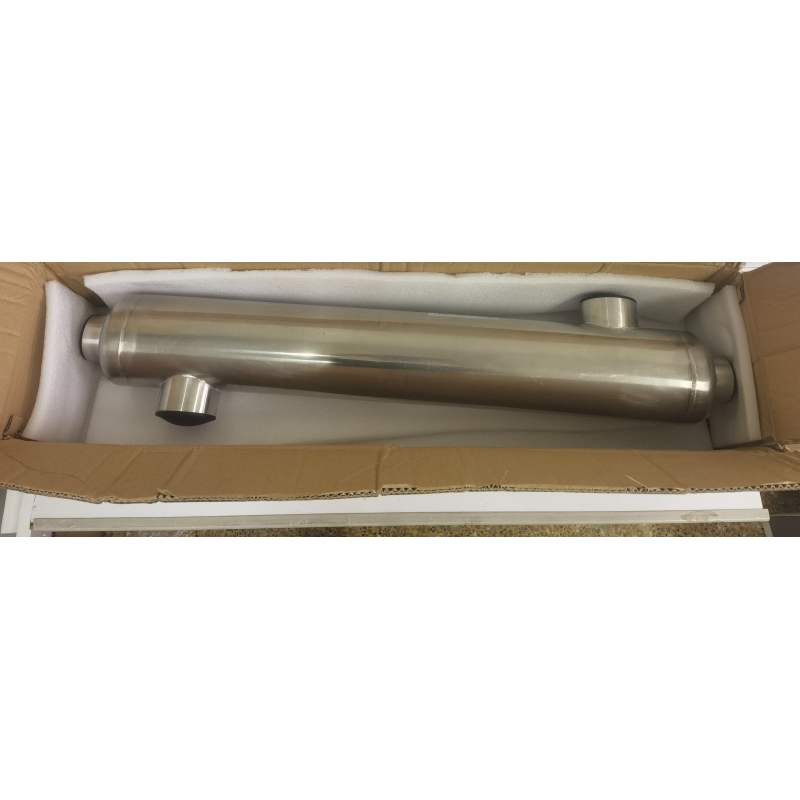

Packing&Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
<img alt="" src="

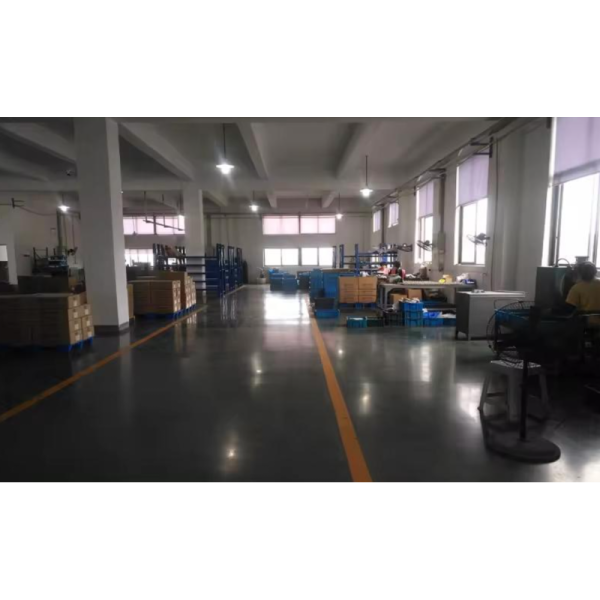

Company Profile
